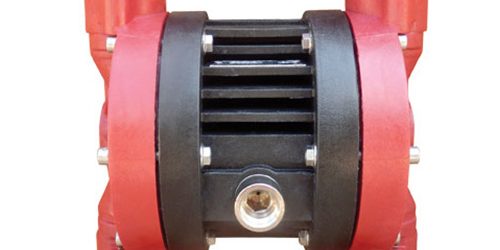

Ruby 115 – 1/2”

Atex Cerification :	STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2G Ex h IIB T4 Gb – II 2D Ex h IIIB 135°C Db
Construction Material :	PP , PP+CF , PVDF+CF , ALUMINUM
Intake/delivery connections :	G 1/2” – DN 15 (on request)
Air connection :	1/2”
Max. flow rate :	72 L/min
Max. flow pressure :	8 bar
Operating pressure :	Min. 2 bar – Max.8 bar
Max. suction head :	3 m
Max. size of solids :	3.0 mm
Max. operating Temperature :	PP 60⁰C , PVDF 95⁰C , Aluminum 95⁰C
Weight PP :	4.0 Kg
Weight PVDF+CF :	5.5 Kg
Weight Aluminum :	6.0 Kg
